Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼’’ to 4’’ (Reducing)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Female Threaded
- Mfg. Process : Investment casting
- Surface finish : Electro Polished
A reducing tee iN a pipe fitting used to connect three MALE THREADED pipes of different diameters, allowing for a smooth transition and flow change in piping systems, especially where a smaller branch line joins a larger main line.

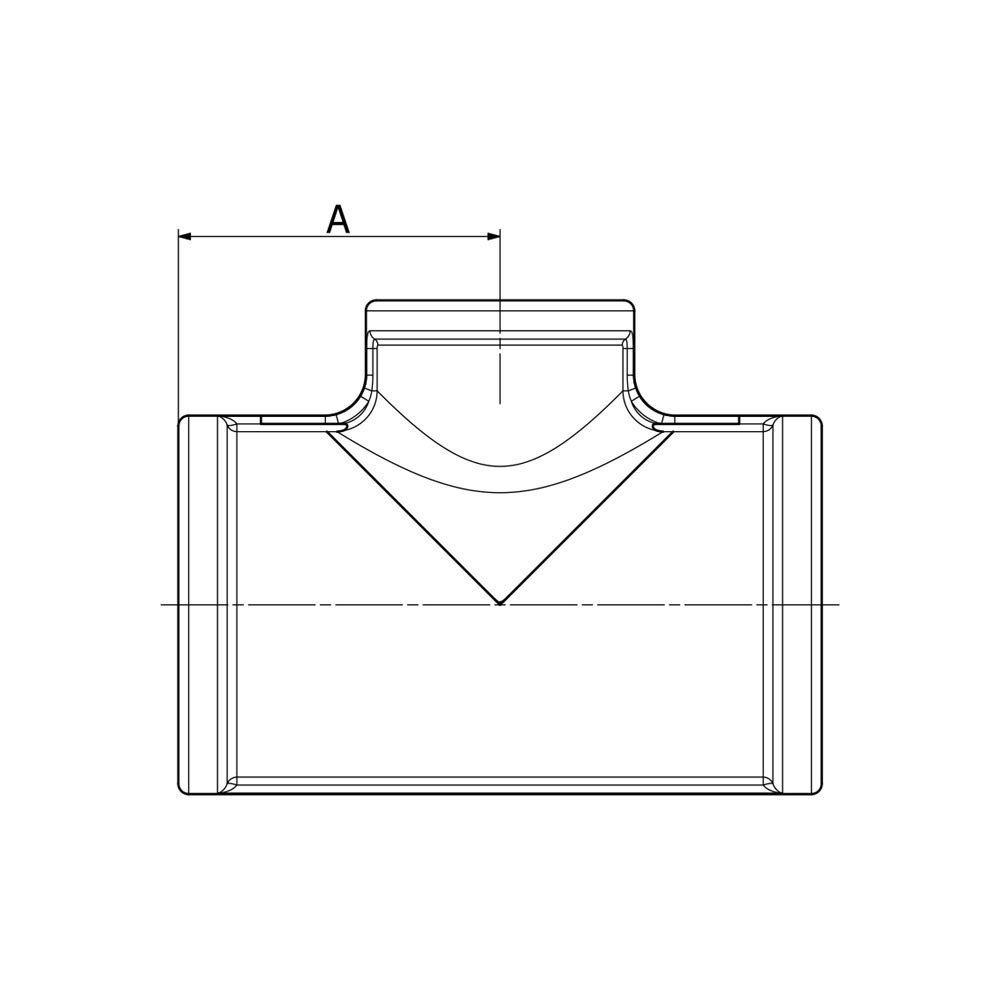

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
| ? × ¼ |
10 × 8 |
23.00 MM |
| ½ × ¼ |
15 × 8 |
27.00 MM |
| ½ × ? |
15 × 10 |
27.00 MM |
| ¾ × ¼ |
20 × 18 |
30.50 MM |
| ¾ × ? |
20 × 10 |
30.50 MM |
| ¾ × ½ |
20 × 15 |
30.50 MM |
| 1 × ¼ |
25 × 8 |
38.00 MM |
| 1 × ? |
25 × 10 |
38.00 MM |
| 1 × ½ |
25 × 15 |
38.00 MM |
| 1 × ¾ |
25 × 20 |
38.00 MM |
| 1 ¼ × ½ |
32 × 15 |
43.00 MM |
| 1 ¼ × ¾ |
32 × 20 |
43.00 MM |
| 1 ¼ × 1 |
32 × 25 |
43.00 MM |
| 1 ½ × ½ |
40 × 15 |
47.00 MM |
| 1 ½ × ¾ |
40 × 20 |
47.00 MM |
| 1 ½ × 1 |
40 × 25 |
47.00 MM |
| 1 ½ × 1 ¼ |
40 × 32 |
47.00 MM |
| 2 × ½ |
50 × 15 |
55.00 MM |
| 2 × ¾ |
50 × 20 |
55.00 MM |
| 2 × 1 |
50 × 25 |
55.00 MM |
| 2 × 1 ¼ |
50 × 32 |
55.00 MM |
| 2 × 1 ½ |
50 × 40 |
55.00 MM |
| 2 ½ × 1 |
65 × 25 |
69.00 MM |
| 2 ½ × 1 ¼ |
65 × 32 |
69.00 MM |
| 2 ½ × 1 ½ |
65 × 40 |
69.00 MM |
| 2 ½ × 2 |
65 × 50 |
69.00 MM |
