Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼” to 4” (Equal & Reducing)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Female Threaded
- Mfg. Process : Investment Casting
- Surface Finish : Electro polished
To allow for the branching, merging, or diverting of fluid flow, connecting three MALE THREADED pipes in a single joint.

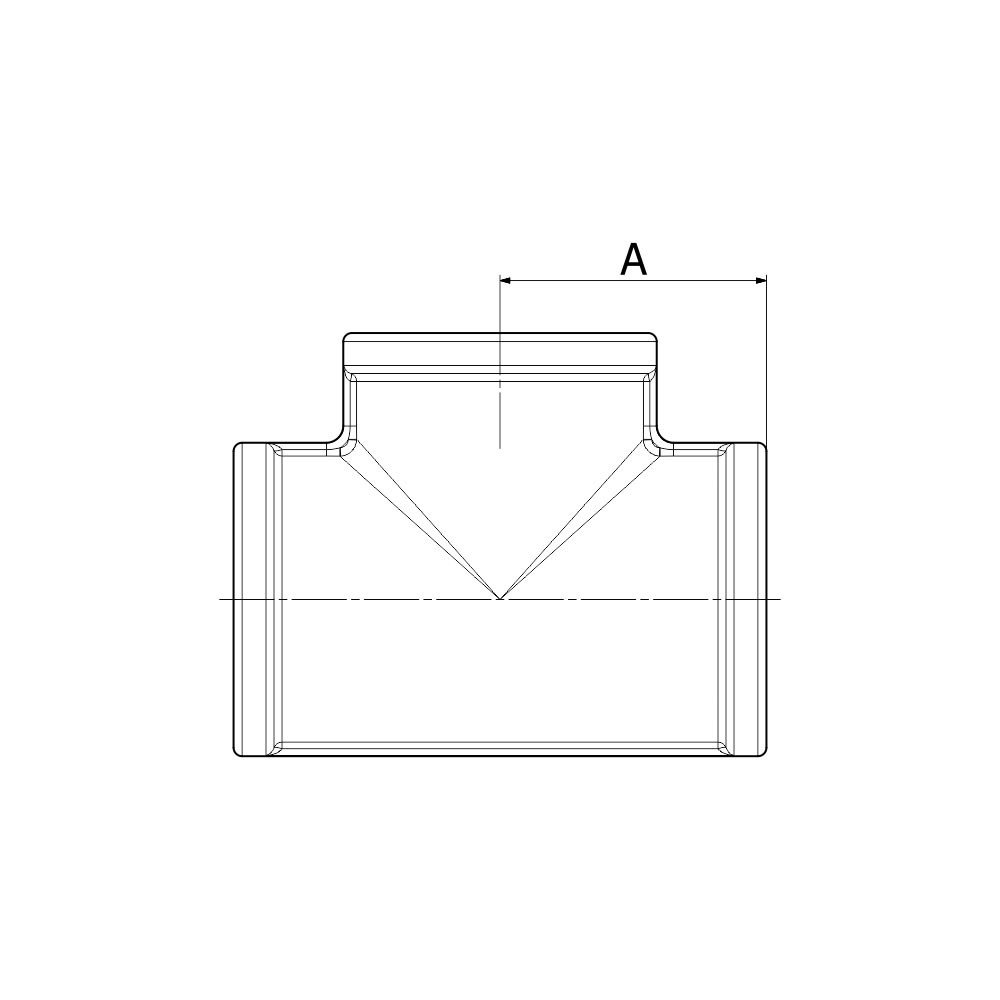

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
| ¼ |
8 |
20.00 MM |
| ? |
10 |
23.00 MM |
| ½ |
15 |
27.00 MM |
| ¾ |
20 |
30.50 MM |
| 1 |
25 |
38.00 MM |
| 1 ¼ |
32 |
43.00 MM |
| 1 ½ |
40 |
47.00 MM |
| 2 |
50 |
55.00 MM |
| 2 ½ |
65 |
69.00 MM |
| 3 |
80 |
78.00 MM |
| 4 |
100 |
96.00 MM |
