Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼” to 4” (Equal)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Female Threaded
- Mfg. Process : Investment Casting
- Surface Finish : Electro polished
- Type : O ring type (PTFE43)
Unions are FEMALE threaded fittings that allow for easy connection and disconnection of pipes without the need for cutting or soldering, making them ideal for applications requiring frequent maintenance or repairs.

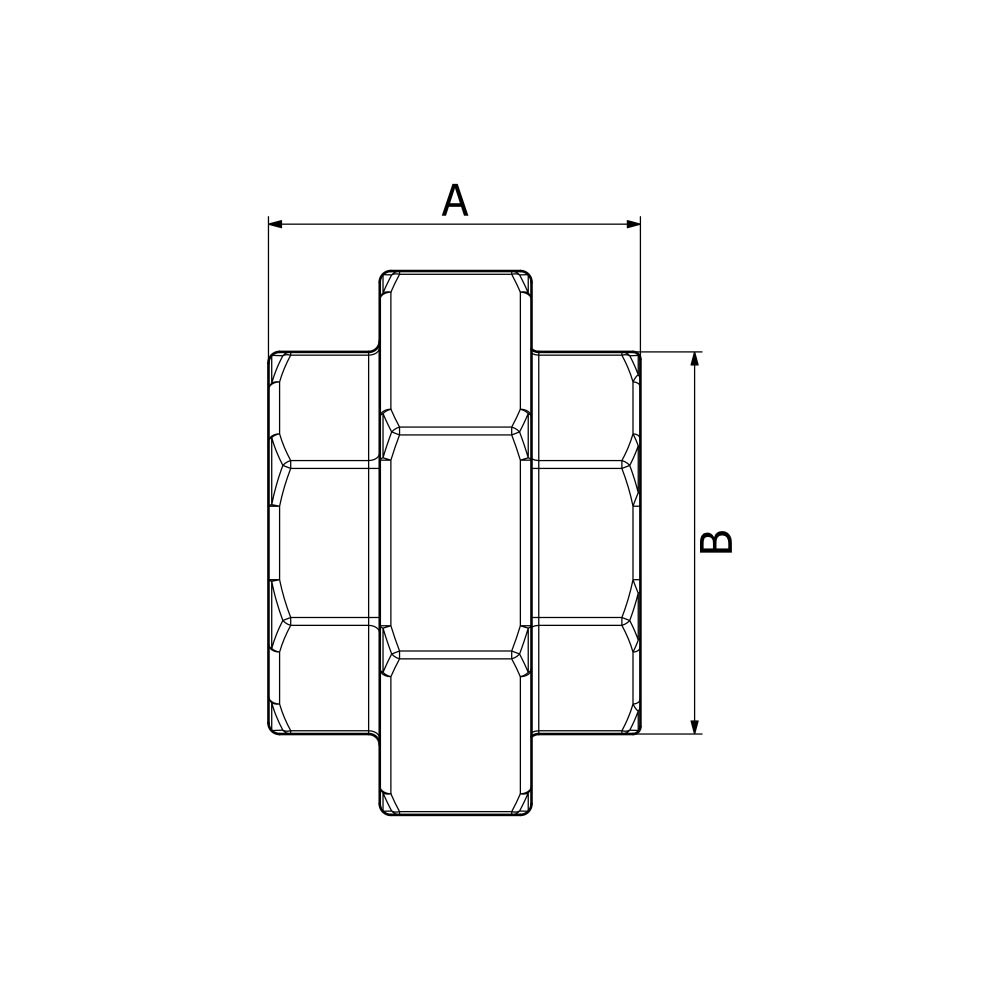

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
B (mm) |
| ¼ |
8 |
34.00 MM |
18.00 MM |
| ? |
10 |
35.00 MM |
22.00 MM |
| ½ |
15 |
41.00 MM |
26.50 MM |
| ¾ |
20 |
47.00 MM |
33.00 MM |
| 1 |
25 |
50.00 MM |
40.50 MM |
| 1 ¼ |
32 |
53.00 MM |
47.50 MM |
| 1 ½ |
40 |
55.50 MM |
54.00 MM |
| 2 |
50 |
60.00 MM |
68.00 MM |
| 2 ½ |
65 |
63.00 MM |
84.50 MM |
| 3 |
80 |
66.50 MM |
99.00 MM |
| 4 |
100 |
71.00 MM |
125.00 MM |
