Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼’’ to 4’’ (Equal)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Female Threaded
- Mfg. Process : Investment Casting
- Surface finish : Electro Polished

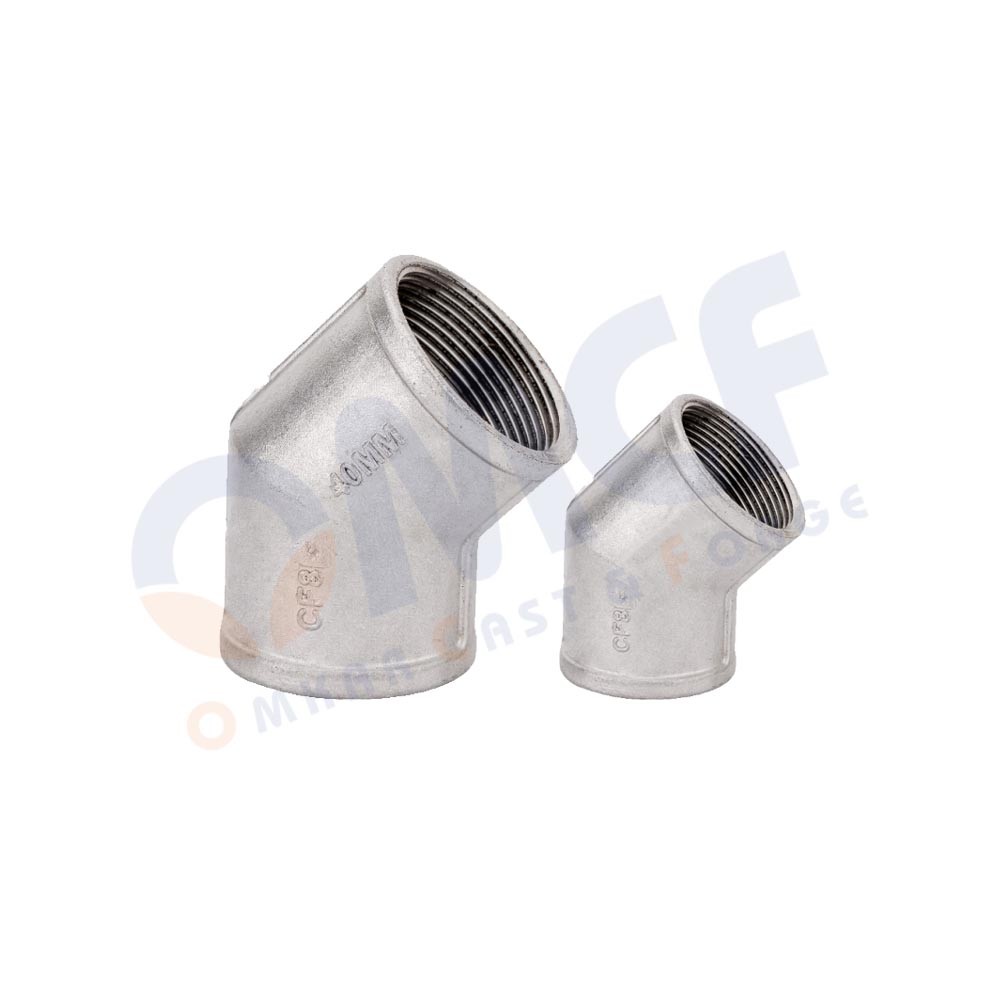

The Elbow 45° Pipe Fitting is used to provide a 45° turn to a pipeline , It allows for easy redirection and efficient flow of water or other fluids, enabling effective irrigation and water distribution in the field.

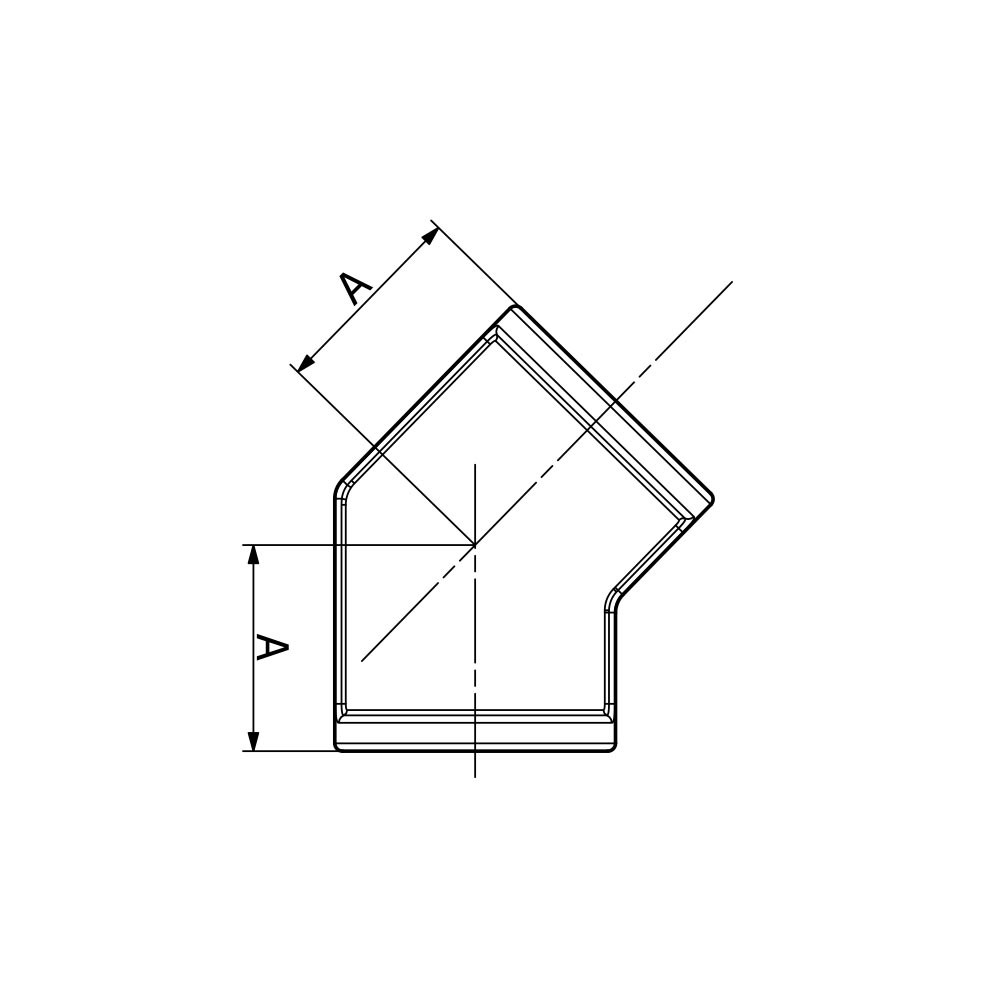

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
| ½ |
15 |
23.50 MM |
| ¾ |
20 |
26.00 MM |
| 1 |
25 |
28.00 MM |
| 1 ¼ |
32 |
30.00 MM |
| 1 ½ |
40 |
31.00 MM |
| 2 |
50 |
35.00 MM |
