Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼'' to 4'' (Equal)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Female Threaded
- Mfg. Process : Investment Casting
- Surface finish : Electro Polished
TO serve the purpose of sealing off the end of a MALE THREADED PIPE END , preventing leakage and maintaining the integrity of the pipeline.

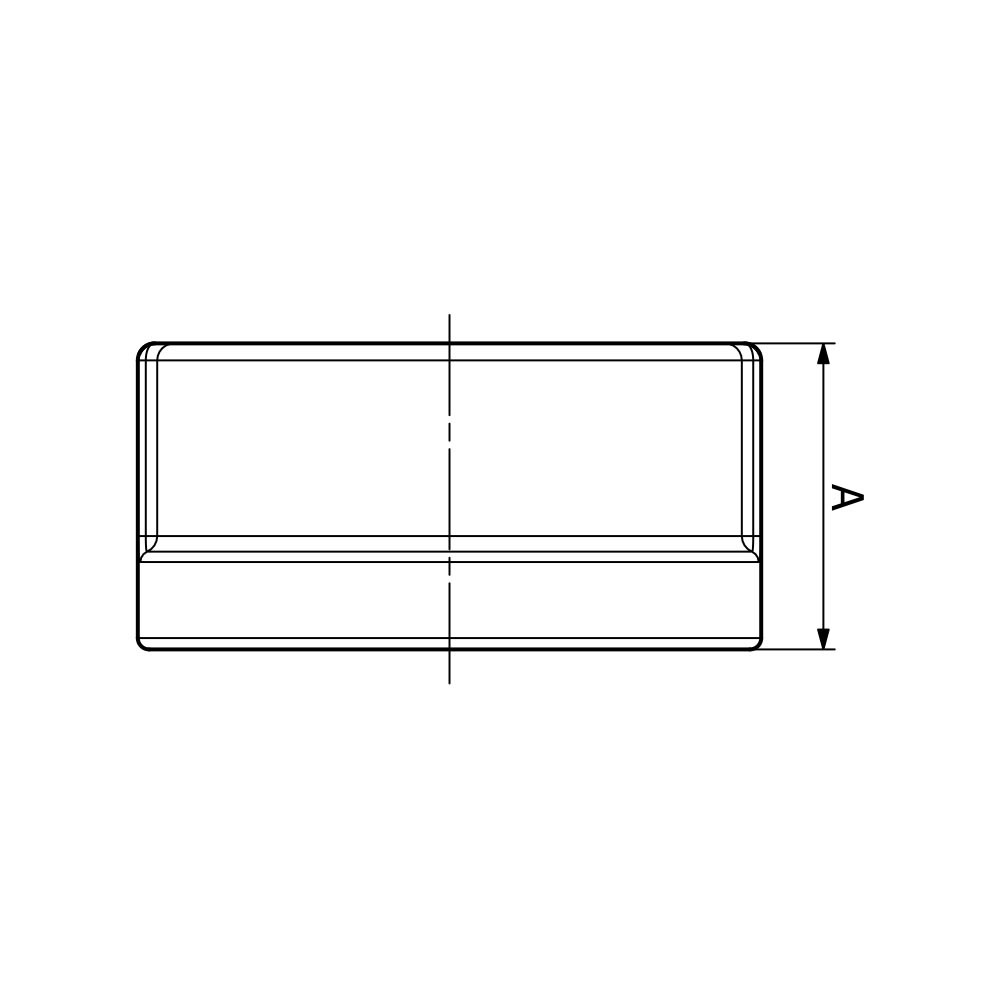

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
| ¼ |
8 |
18.00 MM |
| ? |
10 |
20.50 MM |
| ½ |
15 |
23.00 MM |
| ¾ |
20 |
24.50 MM |
| 1 |
25 |
26.50 MM |
| 1 ¼ |
32 |
28.50 MM |
| 1 ½ |
40 |
30.00 MM |
| 2 |
50 |
32.50 MM |
| 2 ½ |
65 |
34.00 MM |
| 3 |
80 |
35.00 MM |
| 4 |
100 |
36.00 MM |
