Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼'' to 4'' (Equal)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Male Threaded
- Mfg. Process : Investment Casting
- Surface finish : Electro Polished
- Head Type : Square Head
TO seal the end OF FEMALE THREADED CONNECTION END to prevent leaks, protect against corrosion, and isolate sections of piping during maintenance or when not in use.

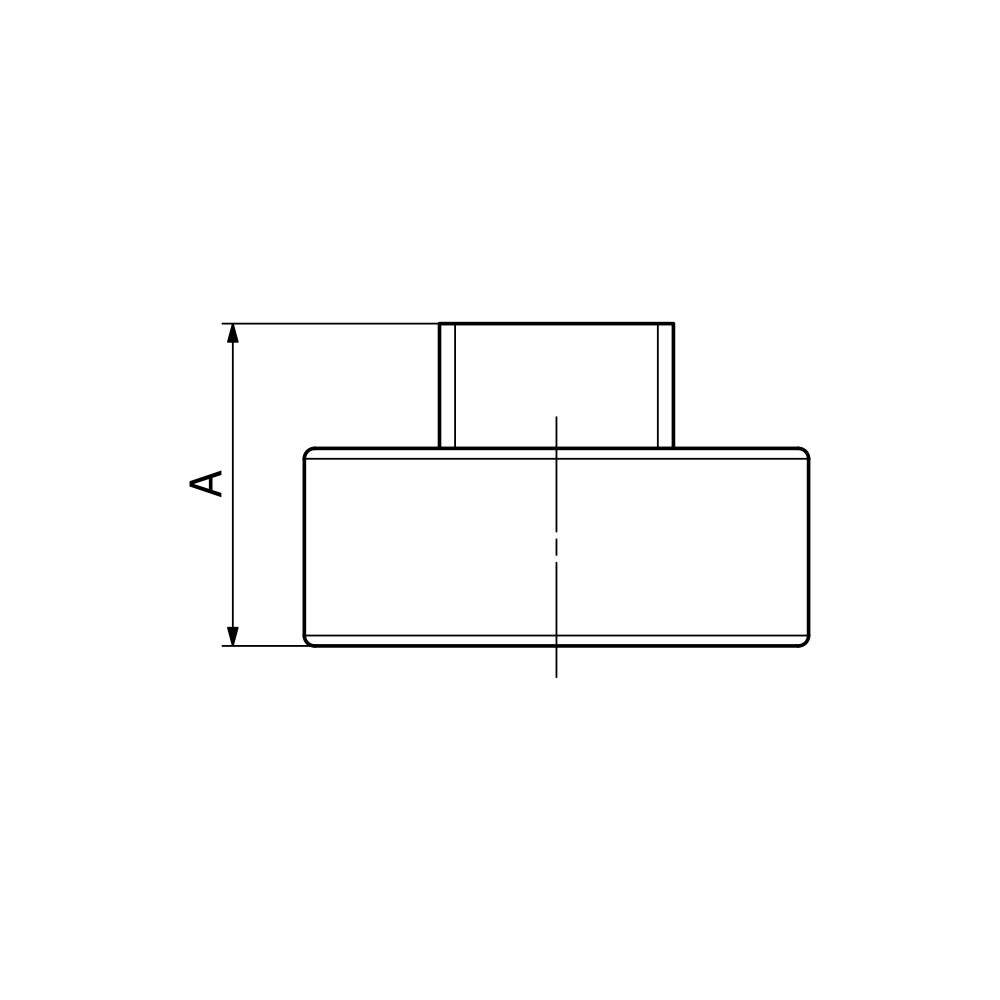

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
| ¼ |
8 |
15.00 MM |
| ? |
10 |
16.00 MM |
| ½ |
15 |
22.00 MM |
| ¾ |
20 |
23.50 MM |
| 1 |
25 |
26.50 MM |
| 1 ¼ |
32 |
30.00 MM |
| 1 ½ |
40 |
33.00 MM |
| 2 |
50 |
35.50 MM |
| 2 ½ |
65 |
38.00 MM |
| 3 |
80 |
39.50 MM |
| 4 |
100 |
41.00 MM |
