Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼” to 4” (Equal & Reducing)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Male Threaded
- Mfg. Process : Investment Casting
- Surface Finish : Electro Polished
To connect two female-threaded fittings, pipes, or components, providing a secure and tight connection, especially where frequent disassembly and reassembly are needed

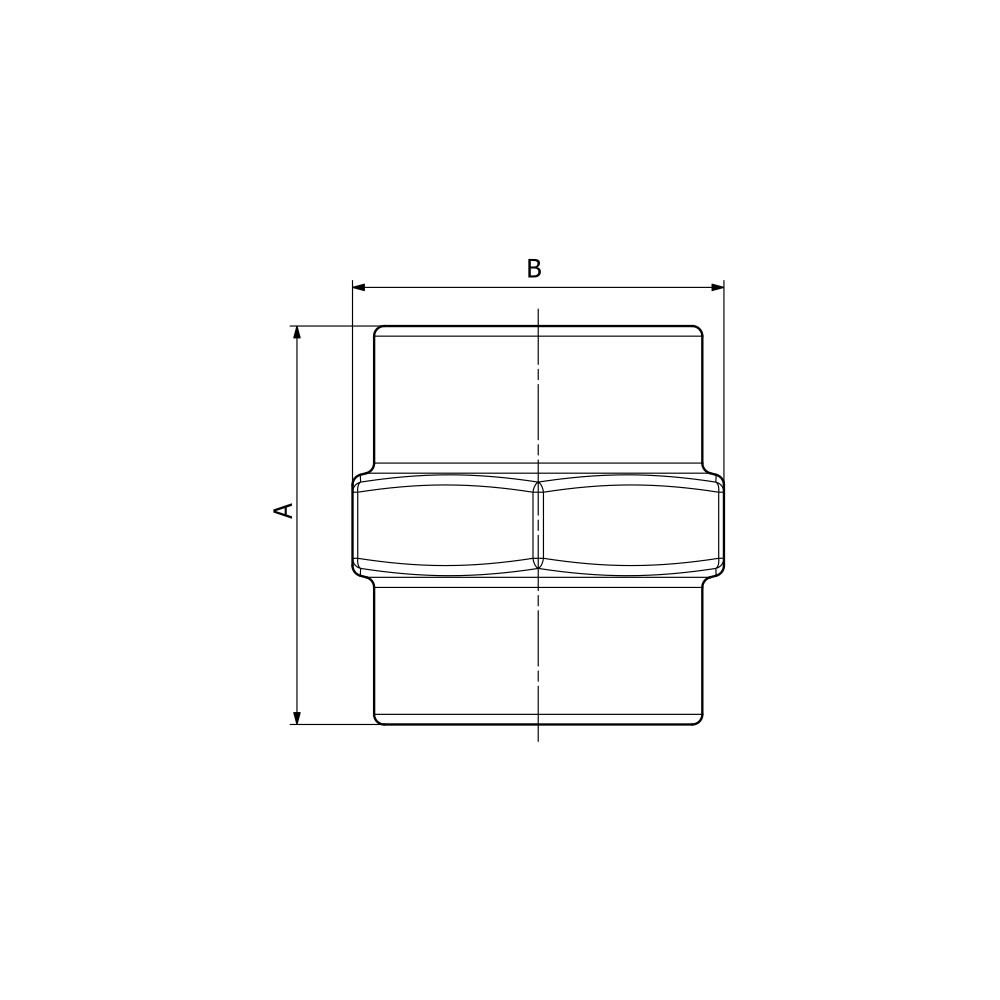

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
B (mm) |
| ¼ |
8 |
33.50 MM |
17.00 MM |
| ? |
10 |
35.00 MM |
20.00 MM |
| ½ |
15 |
42.00 MM |
24.00 MM |
| ¾ |
20 |
46.00 MM |
30.00 MM |
| 1 |
25 |
51.00 MM |
37.50 MM |
| 1 ¼ |
32 |
55.50 MM |
47.50 MM |
| 1 ½ |
40 |
59.00 MM |
53.00 MM |
| 2 |
50 |
64.00 MM |
64.00 MM |
| 2 ½ |
65 |
71.00 MM |
79.50 MM |
| 3 |
80 |
78.00 MM |
94.00 MM |
| 4 |
100 |
85.50 MM |
119.50 MM |
