Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼” to 4” (Equal & Reducing)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Male Threaded X Hose End
- Mfg. Process : Investment Casting
- Surface Finish : Electro Polished
Acts as a connector, enabling the attachment of a hose or pipe to a threaded fitting, valve, or equipment, facilitating fluid or gas transfer in various industries.

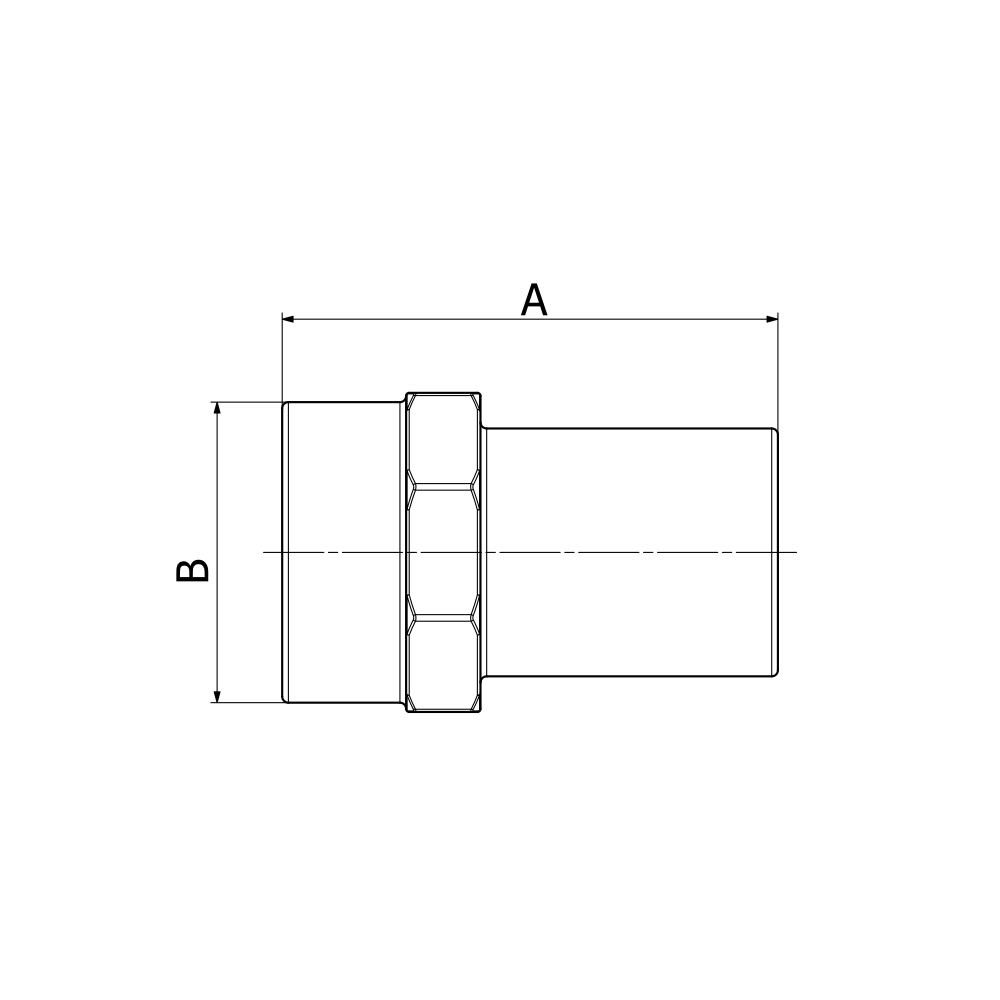

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
B (mm) |
| ¼ |
8 |
44.50 MM |
17.00 MM |
| ? |
10 |
47.50 MM |
20.00 MM |
| ½ |
15 |
51.00 MM |
24.00 MM |
| ¾ |
20 |
57.50 MM |
30.00 MM |
| 1 |
25 |
71.50 MM |
37.50 MM |
| 1 ¼ |
32 |
77.00 MM |
47.50 MM |
| 1 ½ |
40 |
82.00 MM |
53.00 MM |
| 2 |
50 |
94.50 MM |
64.00 MM |
| 2 ½ |
65 |
122.00 MM |
79.50 MM |
| 3 |
80 |
136.00 MM |
94.00 MM |
| 4 |
100 |
143.50 MM |
119.50 MM |
