Specification
- Material grade : CF8/CF8M
- Thread : BSP/NPT/BSPT
- Size range : ¼” to 4” (Equal)
- Pressure rating : Pn25
- Working pressure : 25 kg / cm2(356 psig)
- Connection : Male Threaded X Female Threaded
- Mfg. Process : Investment Casting
- Surface Finish : Electro Polished
Connecting to female internal threaded and male external threaded pipes IN RIGHT ANGLE TO CONTINUE FLOW SMOOTHLY.

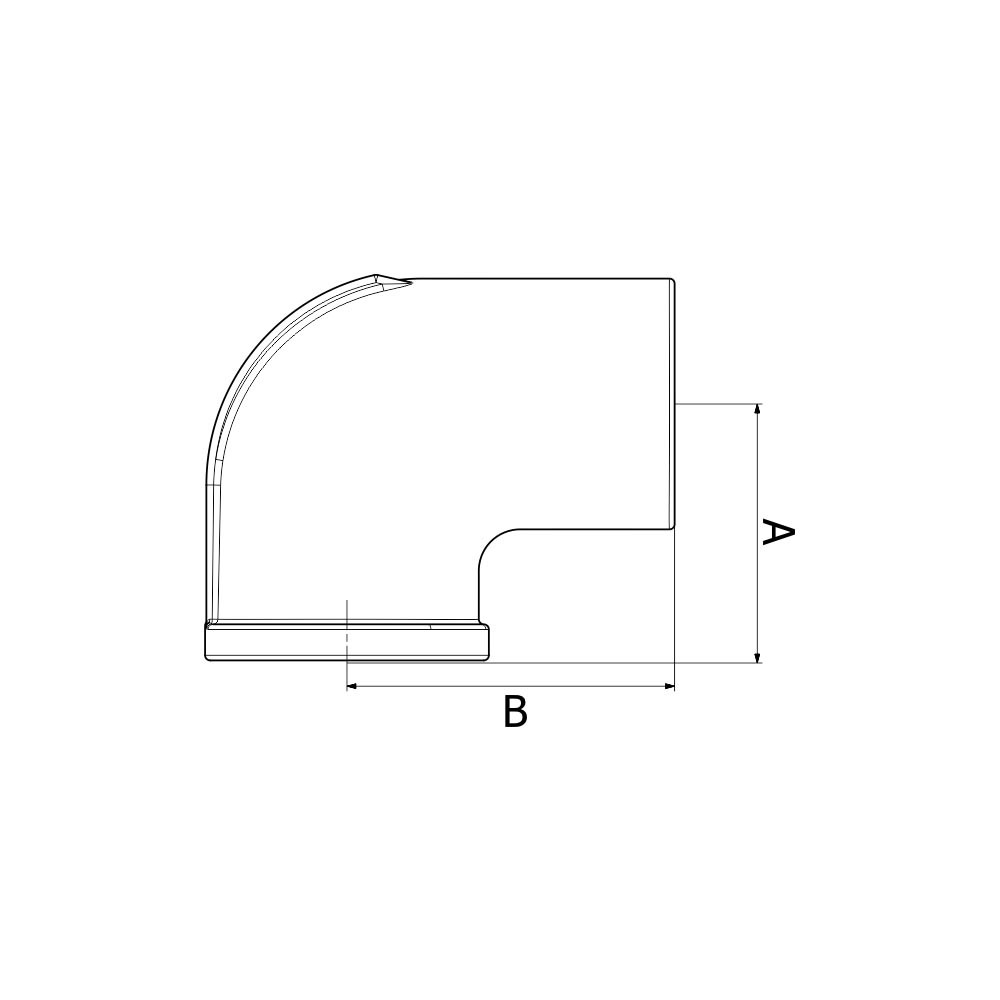

Dimensions
| Size (Inch) |
Size (mm) |
A (mm) |
B (mm) |
| ¼ |
8 |
21.00 MM |
26.50 MM |
| ? |
10 |
24.50 MM |
28.50 MM |
| ½ |
15 |
29.50 MM |
33.50 MM |
| ¾ |
20 |
33.50 MM |
38.00 MM |
| 1 |
25 |
39.00 MM |
44.50 MM |
| 1 ¼ |
32 |
46.50 MM |
53.00 MM |
| 1 ½ |
40 |
51.00 MM |
60.00 MM |
| 2 |
50 |
57.00 MM |
71.00 MM |
